TL331VSN4T3G

شرح

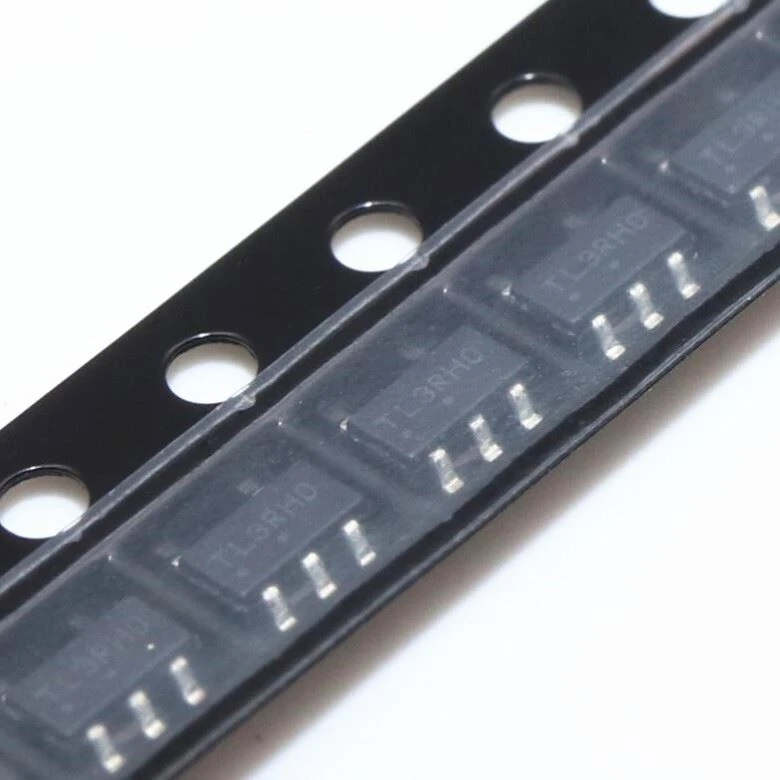

The TL331 is an open collector, low−power comparator designed specifically to operate over a wide supply range from 2 V to 36 V single supply and ±1 V to ±18 V for split supplies. The input common−mode voltage range includes ground, even when operated from a single power supply voltage. TL331 comes in a space saving TSOP−5 package and is also available in an automotive qualified version.

امکانات

●Wide Single Supply Voltage Range or Dual Supplies

●Low Supply Current: 0.5 mA Typical

●Low Input Bias Current: 25 nA Typical

●Low Input Offset Current: ±5 nA Typical

●Low Input Offset Voltage: ±2 mV Typical

●Input Common Mode Voltage Range includes Ground

●Low Output Saturation Voltage: 150 mV Typ at IO = 4 mA

●Differential Input Voltage Range Equal to the Supply Voltage

●TTL, DTL, ECL, CMOS Compatible Devices

●TL331V for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable

●These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
