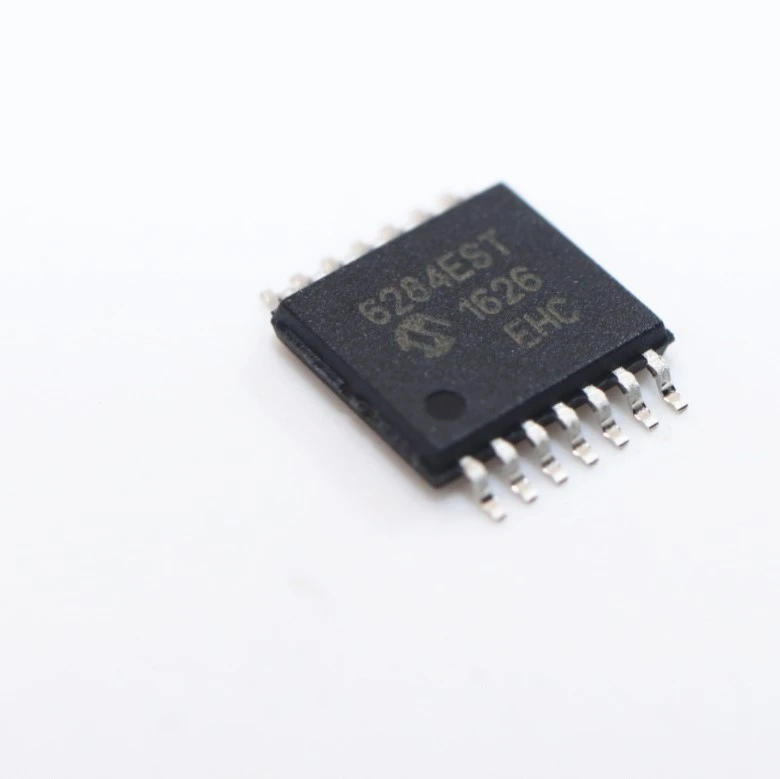

MCP6284-E

امکانات

●Gain Bandwidth Product: 5 MHz

●Supply Current: IQ {{0}} µA • Supply Voltage: 2.2V to 6.0V

●Rail-to-Rail Input/Output

●Extended Temperature Range: -40 degree to plus 125 degree

●Available in Single, Dual, and Quad Packages

●Single with CS (MCP6283)

●Dual with CS (MCP6285)

برنامه های کاربردی

●Photodiode Amplifier

●Analog Filters

●Notebooks and PDAs

●Automotive

●Battery-Powered Systems

شرح

The series of Microchip Technology Inc. MCP6281/1R/2/3/4/5 operational amplifiers provide wide bandwidth for the current. The series features a gain bandwidth product of 5MHz and aphase margin of 65 degree . This family also operates from a single supply voltage as low as 2.2V, while drawing 450 µA quiescent current. Additionally, the MCP6281/1R/2/3/4/5 supports rail-to-rail input and output swing, with a common mode input voltage range of VDD plus 300 mV to VSS – 300 mV. The MCP6285 has a Chip Select (CS) input for dual op amps in an 8-pin package. This device is manufactured by cascading the two op amps (the output of op amp A connected to the non-inverting input of op amp B). The CS input puts the device in Low-power mode.
